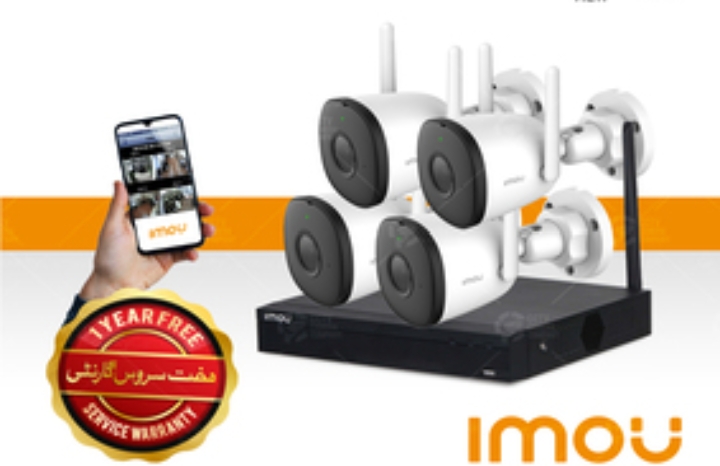

4 camera IMOU 2MP Wireless (Wi-Fi) Kit NK44W0H-1T(WD)

4 Cameras CCTV Plug and Play. 2MP Wi-Fi Kit

4-Channel HD camera 2MP Wi-Fi Kit,We have the latest NK42W0-1T (WD) 4 Channel 2MP Wi-Fi camera Kit in Pakistan.

NK44W0H-1T(WD)New 4 Channel 2MP Wi–Fi Kit. 4*2MP Wi–Fi Cameras with IP66 Protection. 4–Channel Wi–Fi NVR with Two External Antennas.

IMOU 2MP Wireless (Wi-Fi) Kit NK44W0H-1T(WD) Highlights

• Imou offers the best Wireless Plug and Play CCTV camera system.

  • Cameras connect to recorder using your home Wifi network

  • Records crystal clear 4-megapixel (2688×1520) video

  • 30m night vision for use in completely unlit areas

  • Includes 4-channel HD recorder with your choice of hard drive

  • View cameras & recordings from anywhere using PC, phone or tablet

  • It has the best and the highest quality of 4*2MP Wi-Fi Cameras and it comes with IP66 Protection inbuilt capability

  • It comes inbuilt capability that enables it to work with a 4-Channel Wi-Fi NVR with Two External Antennas

  • This device is very Easy to Install and also a very dependable User-Friendly Operation

  • It is the newest Imou device that comes with a Superior Wi-Fi Performance, and also a dependable Automatic Wireless Connection

  • It is IDMSS/DMSS that ensures for Easy Network Management

  Features of his 4-Channel HD camera 2MP Wireless (Wi-Fi) Kit:

  IMOU WiFi Camera
  Connects to the recorder via WiFi, so there’s no need to run cables between the devices. Perfect for large properties or installations that need to be moved around. Provides a range of up to 50 metres

  2-Megapixel Video
  Unlike traditional wireless cameras with low resolutions, these cameras record 2688×1520 video, with twice the detail of even Full HD, at 20 frames per second

  High Resolution Video
  Outputs video with over twice the detail of Full HD, for recording and viewing on an NVR

  30m Night Vision
  Uses infrared LEDs to clearly record subjects after dark, even in larger outdoor spaces. Up to 30 metres of night vision range

  IP66-Rated
  Dome housings not only keep cameras discreet, but are completely weatherproof, allowing outdoor use

  Wide Angle Lens
  2.8mm lens records everything in a 103° arc in front of the camera

  One-time Configuration– Connect camera to recorder using the included patch cable for a one-time setup, then the camera can be used over wifi with no network cable

  Automated Network Recovery
  Cameras include a MicroSD card slot, which can be set up as an automated backup in case the recorder loses connection. Cards not included

  Wide Dynamic Range

  Setting allows enhanced highlight and shadow sensitivity, so it adjusts the image automatically to eliminate areas of underexposure and overexposure, helping preserve detail in high-contrast lighting conditions such as windows

  Smart Detection
  Allows the use of IMOU latest automation features, including line crossing, object removal and intrusion detection

  On-board Recording
  Features a built-in MicroSD slot for recording. Supports cards up to 128GB

  Smartphone Connectivity
  Remote access allows you to connect into the camera using an app on your smartphone

  H.265+ Compression
  Sends video compressed using H.265+ technology so that higher quality footage can be stored using a more efficient amount of capacity

  Sub Streams
  Captures full resolution footage whilst simultaneously streaming lower resolution images to PC & mobile devices

  Audio & Alarm Inputs
  Includes audio and alarm outputs for recording of sound and integration into an existing alarm system

  Recorder:

  4-Channel Network Video Recorder
  NVR connects to your router, and picks up the cameras on your network

  2MP Recorder
  Capable of recording at 2688×1520 resolution, so you won’t lose any of the stunning detail from the cameras

  Hard Drive Storage
  Includes your choice of pre-installed hard drive for storing footage

  HDMI Output
  easily connect recorder to an HD TV or monitor using standard cable

  Remote Access
  View live cameras or recordings from anywhere in the world using apps for PC, phone or tablet

  Alarm In/Out
  CCTV connects to an existing alarm system, letting the devices trigger each othe

  The Video as well as Audio Input

  IP video input:		4-ch
  Network
  Incoming bandwidth:		50Mbps
  Outgoing bandwidth:		40Mbps

  Video/Audio Output

  Video/Audio Output
  HDMI/VGA output:		1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
  Decoding
  Decoding format:		H.265+/H.265/ H.264+/H.264
  Capability:		1-ch @ 2 MP / 2-ch @ 1080p

  Hard Disk
  Interface Type:		1 SATA interface
  SATA:		1 SATA interface for 1 HDD
  Capacity:		Up to 6TB capacity for each HDD
  External Interface
  Network Interface:		1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface
  USB Interface:		2, USB2.0

  General
  Power Supply:		12 VDC
  Working Temperature:		-10 oC ~ +55 oC (+14 oF~ + 131 oF)
  Working Humidity:		10 % ~ 90 %
  Dimensions:		260 × 246 × 48 mm (10.2″ × 9.7″ × 1.9″)
  Weight(without HDD):		≤ 1 kg (2.2 lb)

  Image Sensor:				1/2.8″ Progressive Scan CMOS
  Min. Illumination:				Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
  Shutter time:				1/3 s to 1/100,000 s
  Slow shutter:				Yes
  Lens:				2.8 mm Horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
  Lens Mount:				M12
  Adjustment Range:				Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
  Day& Night:				IR Cut Filter
  Wide Dynamic Range:				Digital WDR
  Compression Standard
  Video Compression:			H.264+/H.264/MJPEG
  H.264 code profile:			Baseline Profile/Main Profile
  Video bit rate:			32Kbps~8Mbps
  Audio Compression:			G.711/G.722.1/G.726/MP2L2/PCM
  Audio bit rate:			64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)

  Max. Image Resolution:		1920 x 1080
  Frame Rate:		50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  Sub Stream:		50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  Image Enhancement:		BLC/3D DNR
  Image Settings:		Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  Day/Night Switch:		Auto/Scheduled/Day/Night
  Network
  Alarm Trigger:		Motion detection, video tampering alarm, illegal login
  Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour
  General Function:		Heartbeat, mirror, password protection, privacy mask, watermark

  Interface
  Communication Interface:		1 RJ45 10M/100M self-adaptive Ethernet port
  Audio:		1 Built-in mic, mono sound
  Audio
  Environment Noise Filtering:		Support
  Audio Sampling Rate:		8 kHz/16 kHz

  Wi-Fi Specification (-W)
  Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
  Frequency Range:		2.4 GHz ~ 2.4835 GHz
  Channel Bandwidth:		20/40MHz Support
  Security:		64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
  Wireless Range:		50m(depend on environment)
  Protocols:		802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
  General
  IR Range:		Up to 30 m
  Operation Condition:		-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  Power Supply:		12 VDC ± 25%, PoE (802.3at, class 4), Φ 5.5 mm coaxial power plug
  Power Consumption:		12 VDC, 0.4 A, Max: 5 W
  Weather Proof:		IP66
  Dimensions:		Camera: 99 mm × 68 mm × 66 mm (3.9″ × 2.7″ × 2.6″) With package: 172 mm × 110 mm × 99 mm (6.8″ × 4.3″ × 3.9″)
  Weight:		Camera: 272 g (0.6 lb.) With package: 517 g (1.1 lb.)
