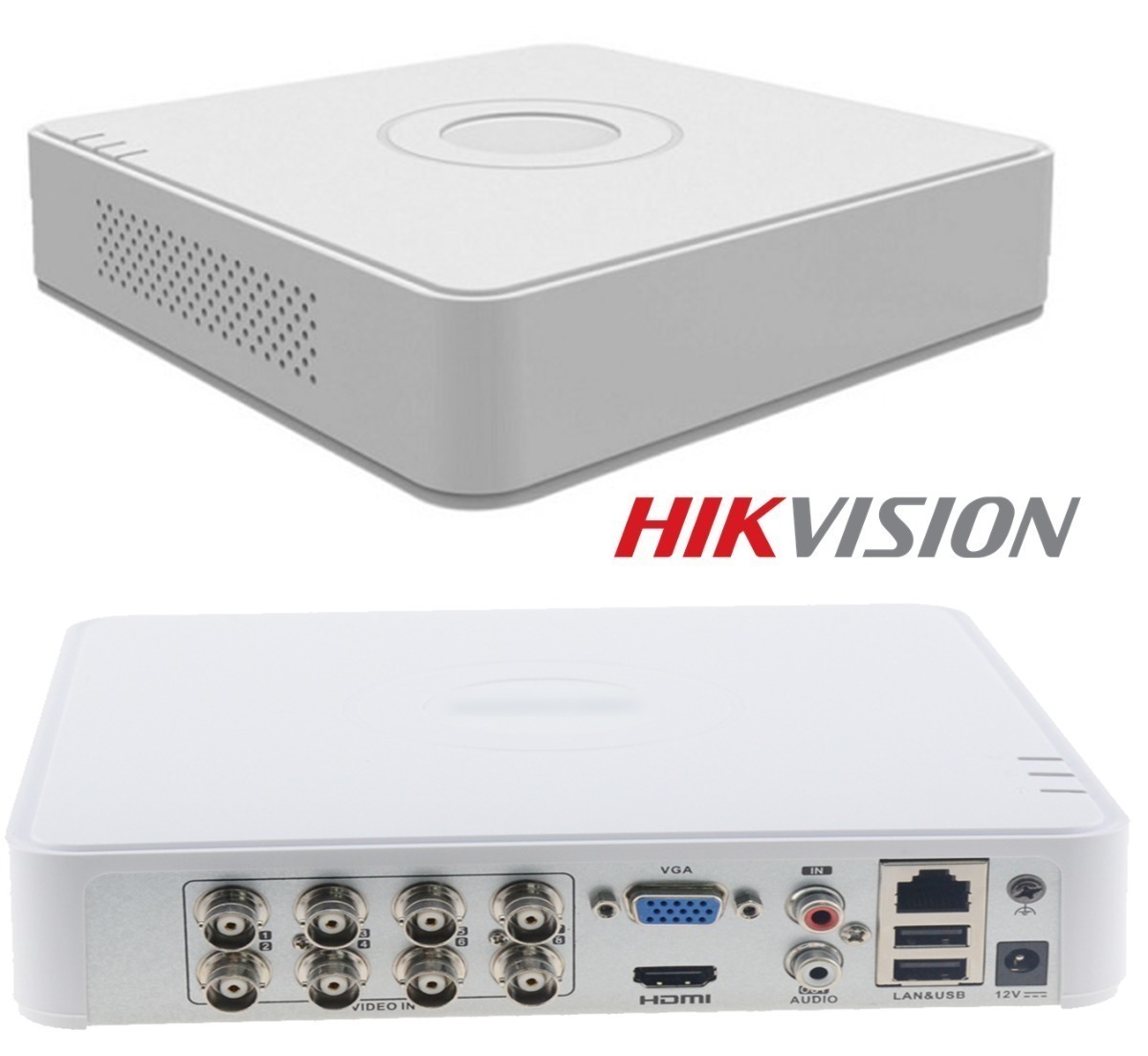

Hikvision 8 Channel DVR DS-7108HGHI-K1

100% Original Hikvision 7108 H.264 /H.265+& Dual-stream video compression
8-ch 1080p Lite Mini 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera inputs (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
- Online Access by IVMS-4500/Hik-Connect Mobile App

Original price was: ₨ 15,500.Current price is: ₨ 14,500.

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

8 channels and 1 HDD supported DVR
- Quick search by object or event type is supported;
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 4 Mbps
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
- IP Video Input
  2-ch (up to 10-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
  8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input 1080p25, 1080p30, 720p25, 720p30
- AHD Input 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input Support
- HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode HDMI/VGA simultaneous output
- Audio Input
  1-ch RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio Reuse the first audio input
- Synchronous Playback 8-ch
- Network
- Total Bandwidth 72 Mbps
- Remote Connection 64
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 4 TB capacity for each disk
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/Out N/A
- General
- Power Supply 12 VDC, 1.5 A
- Consumption ≤ 17 W (without HDD)
- Working Temperature -10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
- ≤ 1 kg (without HDD, 2.2 lb.)
