PoE Power Supply
PoE Standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE Power Pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE Port Ports 1 to 8
Max. Port Power Ports 1 to 8: 30 W
PoE Power Pudget 60 W
Max. Power Consumption 65W
Network Parameters
Port Number 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding Mode Store-and-forward switching
Working Mode Standard mode (default), Extend mode
High Priority Ports NA
Ports For Long-Distance Transmission Ports 1 to 8
MAC Address Table 16 K
Switching Capacity 5.6 Gbps
Packet Forwarding Rate 4.1664 Mpps
Internal Cache4 Mbits
General
Shell Metal material, fan-free design
Gross Weight 1.20
Net Weight 0.555
Dimension (L × H × D) 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
Operating Temperature -10°C to 40°C (14°F to 104°F)
Storage Temperature -40°C to 85 °C -40°F to 185°F)
Operating Humidity 5% to 95% (no condensation)
Storage Humidity 5% to 95% (no condensation)
Power Supply 48 VDC, 1.35 A
Power Consumption In Idle < 5 W
-10%

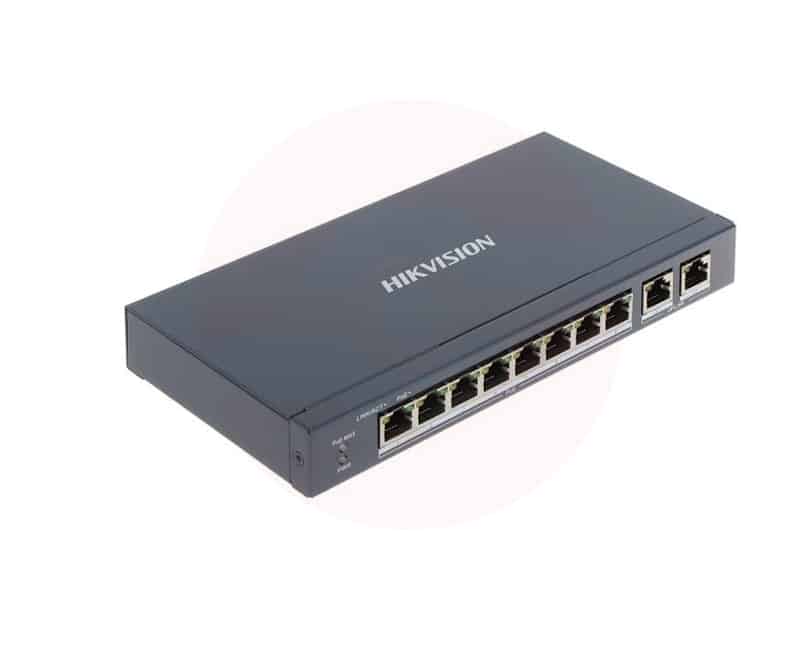

Hikvision DS-3E0310P-E/M 8 Port POE Switch
Hikvision DS-3E0310P-E/M 8 Port POE Switch
8 Port Fast Ethernet Unmanaged POE Switch
8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.
Original price was: ₨ 15,300.₨ 13,700Current price is: ₨ 13,700.
